This is where highly efficient motion detection meets elegant design suitable for all interiors. Choose from a wide range of devices to perfectly match your needs. The SLIM LINE family consists of different PIR and dual-tech models with additional features: lighting, active IR anti-masking, and PET immunity.

ONE ENCLOSURE, MULTIPLE DEVICES

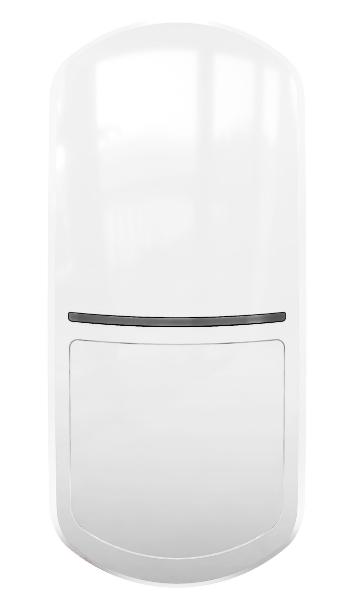

The elegant, slim enclosure is made of high quality plastic. The unified appearance of all the detectors makes it difficult for intruders to identify a specific model, and unifies the appearance of all motion detection devices.

Reliable motion detection

Unique lens

Each detector features a modern lens designed and manufactured in Japan. The new design provides an exceptionally large detection area of up to 20 m × 24 m with a 90° viewing angle.

The shape of the lens, alongside the materials used for production, make it extremely resistant to any deformations.

Reliable operation

The advanced next-generation motion detection algorithm guarantees reliable recognition of moving intruder throughout the whole surveillance area, without triggering unwanted alarms.

Dynamic adaptation of the algorithm to ambient temperature changes improves operational stability of the detectors.

Resistance to animal movement

PET models are resistant to the movement of animals weighing up to 20 kg. Therefore, these models successfully monitor rooms with small pets present, without triggering unwanted alarms.

Quick lens replacement

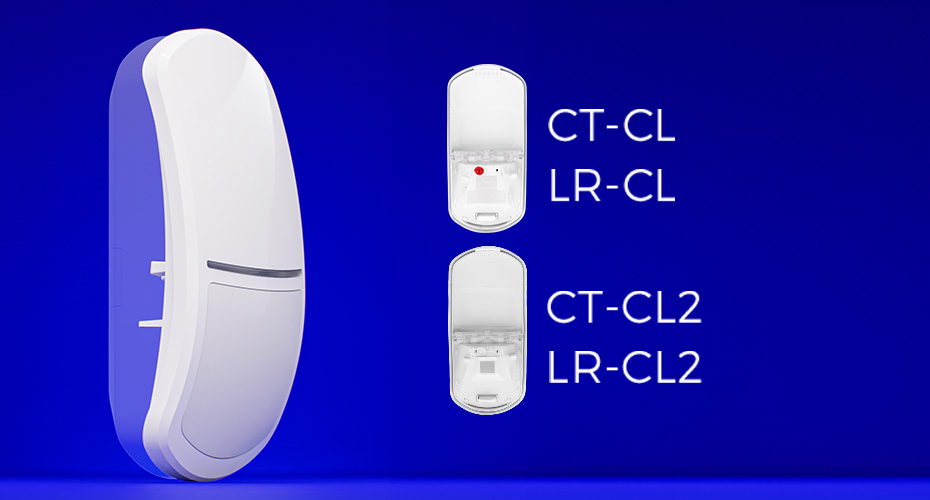

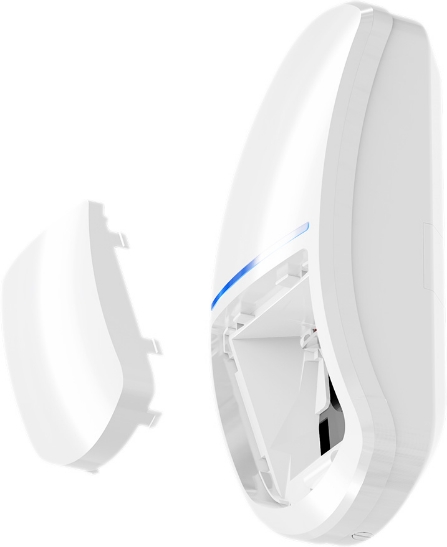

The lenses in all the models* can be quickly and easily replaced, allowing the SLIM LINE detectors to perfectly adapt to site features. Wide angle (WD) lenses are the standard fitting, but curtain (CT) and long range (LR) lenses are also available.

Easily change the enclosure colour

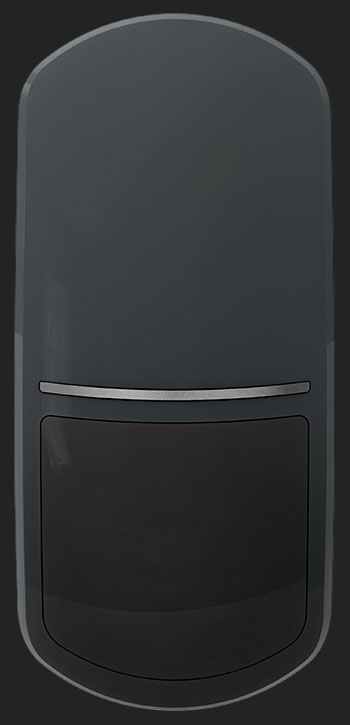

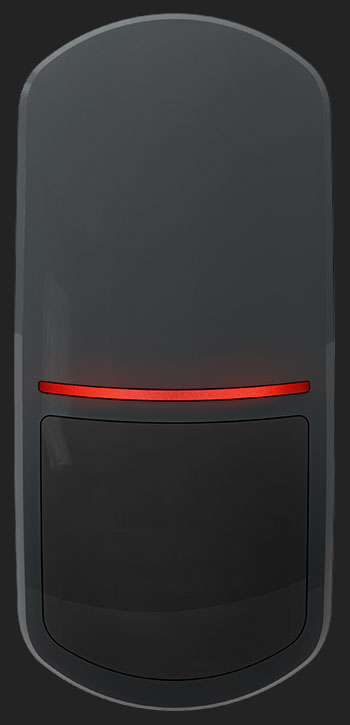

The option to replace the SLIM LINE motion detector enclosure with a dark gray version (depending on the model: OPC-1 DG or OPC-2 DG) allows the device to perfectly blend into the room’s interior. This quick and practical solution combines functionality with attention to visual details.Możliwość wymiany obudowy czujki ruchu SLIM LINE na wersję w kolorze ciemnoszarym (w zależności od modelu: OPC-1 DG lub OPC-2 DG) pozwala idealnie dopasować urządzenie do wnętrza pomieszczenia. To szybkie do zrealizowania i praktyczne rozwiązanie, łączy funkcjonalność z dbałością o detale wizualne.

Two detection paths: PIR and MW

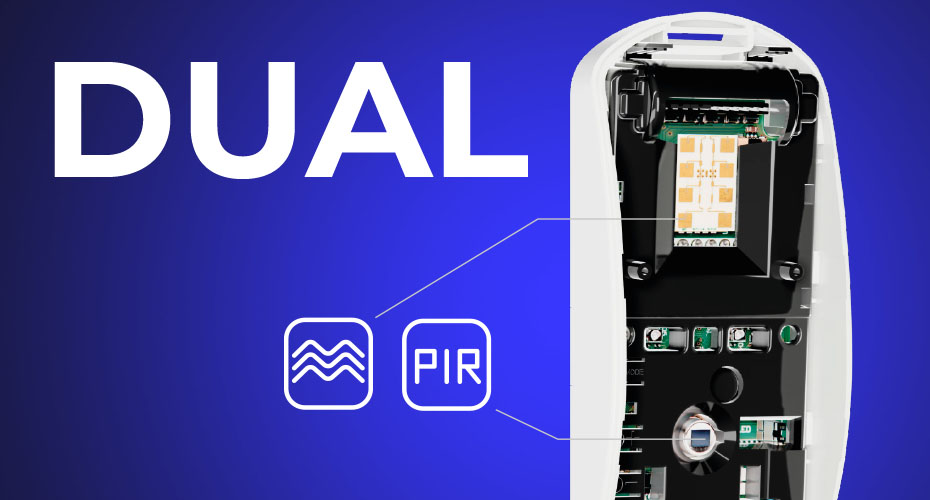

Dual technology detectors are equipped with a microwave sensor (MW), in addition to an infrared sensor (PIR). This significantly increases their resistance to unwanted alarms, caused by sudden temperature changes in protected areas, or air movement within their detection area.

Creep zone protection

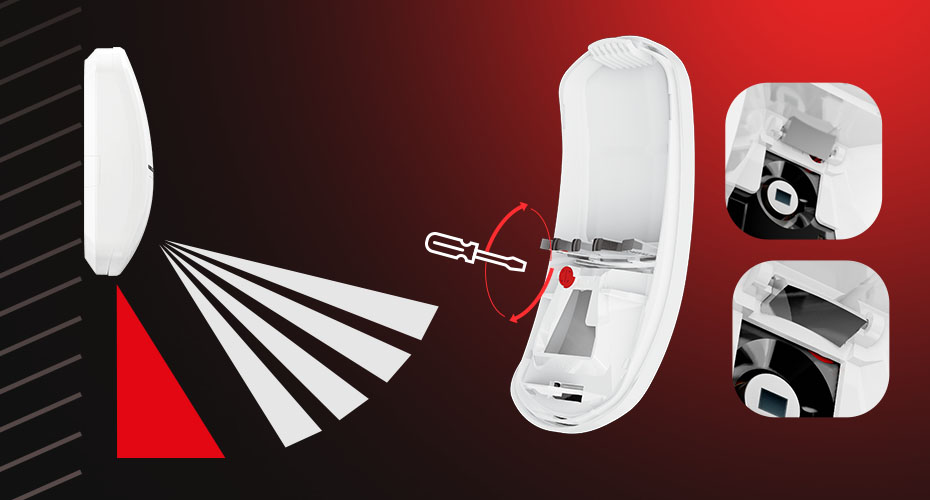

The integrated swivel mirror in the LUNA* and PRO models enables effective observation of the area directly below the detectors – the so-called creep zone.

* except for PET detectors

Cover attempt signalling

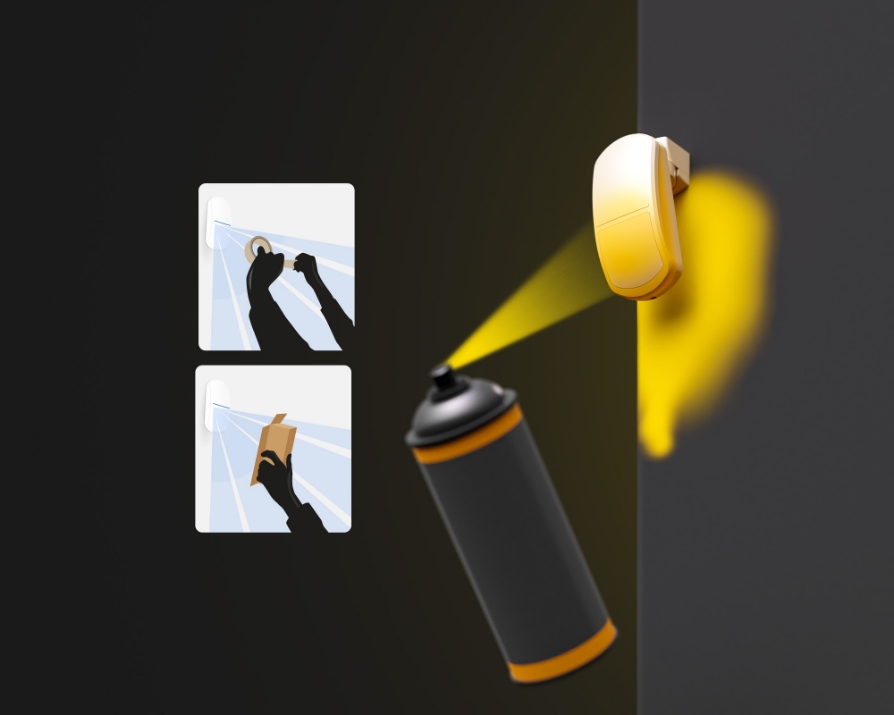

The PRO models feature an active anti-masking function using infrared radiation. Any attempts to disable the devices by covering the lenses (for example by tape, paint, or clear varnish) will be signalled.

Meet the SLIM LINE detectors

Easy and quick installation

1Practical enclosure opening/closing mechanism

You can simply open the enclosure with a flat tip screwdriver. No tools are required to close it.

2 Plug-in terminal block

The LUNA and PRO models come with a plug-in terminal block. When removing the electronics board, wires don't have to be unscrewed. This allows to quickly replace a detector model with another.

3 Built-in EOL resistors

All of SLIM LINE detectors have built-in EOL resistors (1.1 kΩ), for operating with SATEL alarm control panels. The LUNA and PRO models are additionally equipped with resistors (4.7 kΩ and 5.6 kΩ) for faster installation in systems with other control panels.

4 Adjustable wall and ceiling mounting bracket

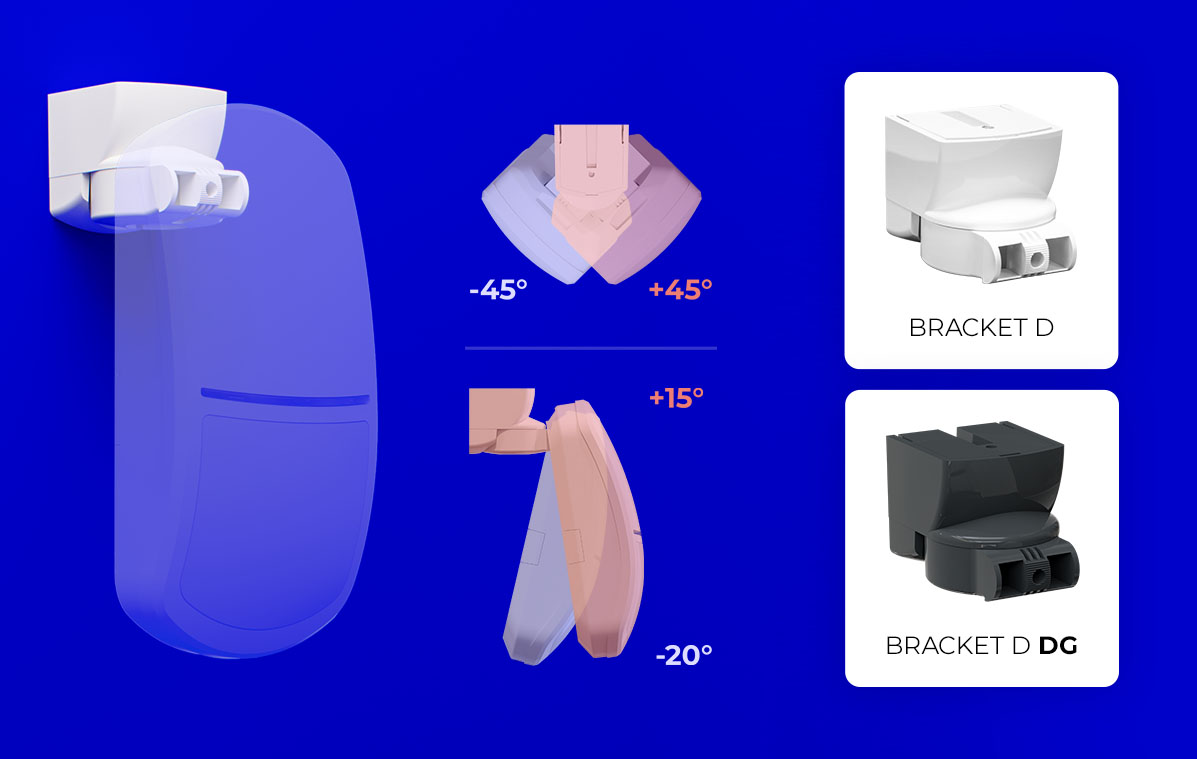

The SLIM LINE detectors are designed to be mounted directly on a flat surface. If the detector needs to be mounted at a different angle in order to optimally adapt the protected area to the room, BRACKET D can be used. This way the detector angle can be adjusted in two planes: up to 35° vertically and up to 90° horizontally. To comply with the EN 50131 requirements for Grade 3, the PRO model bracket is equipped with a tamper switch..

LUNA

Additional light source

The LUNA models feature specially built-in white LEDs. This allows the detectors to serve as motion responsive corridor lighting, especially during power outages. The lighting function can be controlled remotely or for a specified time when motion is detected.

Two sensitivity levels

Detection sensitivity of the LUNA models can be set remotely. This allows to change motion detection settings, and to adjust the detectors’ parameters depending on the partition they supervise. While the partition is not armed, the LUNA lighting can be switched on in response to the slightest movement. When the partition is armed, the detector can use settings appropriate to eliminate triggering of unwanted alarms.

Honourable mention in the "Good Design" 2020 competition!

The SLIM-PIR-LUNA detector received an honourable mention in the “Good Design” 2020 competition in the “Modern Technology” category.

When wiring isn't an option

Reliable detection and the proven quality of the SLIM LINE series – in a wireless version.
Discover battery-powered models that work seamlessly with SATEL’s wireless systems.

APD-200

APD-200 Pet

APMD-250

MPD-310

MPD-310 Pet

Simple configuration
using the remote keyfob

A very useful feature for installers, featured in the LUNA and PRO models, is the ability to remotely change the detectors operating parameters using the OPT-1 keyfob. This way the settings (including sensor sensitivity, operating mode, indicator light or LED lighting manner) can be changed easily, without actually opening the enclosure.

One indicator - many colours

SLIM LINE detectors offer a wide choice of LED indicator colours. Depending on the model, you can choose from four or seven colours.

If required, the indicator can be switched off.

SLIM LINE detectors in the bus version

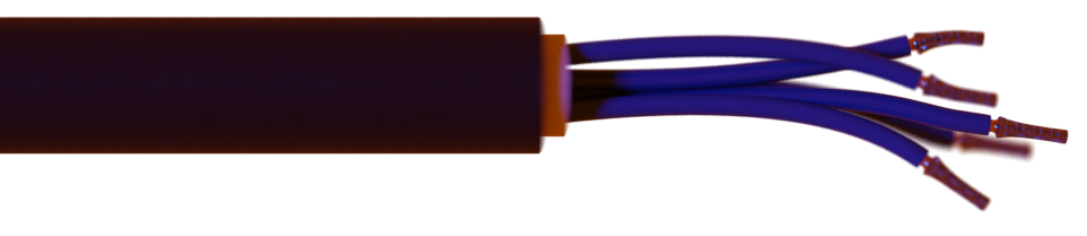

Discover bus models supporting RS-485 communication. Connected directly to the bus line, they enable two-way communication with SATEL alarm control panels*.

Remote detector configuration

directly in the configuration software

Advanced diagnostics

and detector status monitoring

Remote

firmware update

Easier system expansion

thanks to reduced wiring

Direct bus connection without

using panel or expander zones

Identification and addressing

of bus detectors in the system

* SATEL control panels supporting RS-485 bus communication – BE WAVE: WIRE 128, HYBRID 128, HYBRID 128 Plus

Discover SLIM LINE ceiling detectors

The SLIM LINE series includes elegant and highly effective ceiling detectors – a perfect choice for spaces where wall-mounted detectors cannot be installed.

Technical data

Comparison table

<


	SLIM-PIR	SLIM-PIR-PET	SLIM-PIR-LUNA	SLIM-PIR-LUNA-PET	SLIM-PIR-PRO	SLIM-DUAL	SLIM-DUAL-PET	SLIM-DUAL-LUNA	SLIM-DUAL-LUNA-PET	SLIM-DUAL-PRO
compliance with EN 50131 Grade 2	✓	✓	✓	✓		✓	✓	✓	✓
compliance with EN 50131 Grade 3					✓					✓
configuring operating parameters: potentiometers	✓	✓				✓	✓
configuring operating parameters: buttons and keyfob			✓	✓	✓			✓	✓	✓
end-of-line resistors - 1.1 kΩ	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
end-of-line resistors - 4.7 kΩ, 5.6 kΩ			✓	✓	✓			✓	✓	✓
plug-in terminal block			✓	✓	✓			✓	✓	✓
electronics board protecting cover			✓	✓	✓			✓	✓	✓
number of available LED indicator colours	4	4	7	7	7	4	4	7	7	7
active IR anti-masking					✓					✓
creep zone protection			✓		✓			✓		✓
built-in LED lighting			✓	✓				✓	✓
pet immunity function		✓		✓			✓		✓

Lenses


	coverage area with WD lens (standard)	coverage area with LR lens	coverage area with CT lens
SLIM-PIR	15 m x 20 m, 90°	25 m x 3,6 m	16 m x 2 m
SLIM-PIR-PET	12 m x 13 m, 90°	N/A
SLIM-PIR-LUNA	20 m x 24 m, 90°	30 m x 3,6 m	22 m x 2 m
SLIM-PIR-LUNA-PET	12 m x 13 m, 90°	N/A
SLIM-PIR-PRO	20 m x 24 m, 90°	30 m x 3,6 m	22 m x 2 m
SLIM-DUAL	15 m x 20 m, 90°	20 m x 3,6 m	16 m x 2 m
SLIM-DUAL-PET	12 m x 13 m, 90°	N/A
SLIM-DUAL-LUNA	20 m x 24 m, 90°	28 m x 3,6 m	22 m x 2 m
SLIM-DUAL-LUNA-PET	12 m x 13 m, 90°	N/A
SLIM-DUAL-PRO	20 m x 24 m, 90°	28 m x 3,6 m	22 m x 2 m
