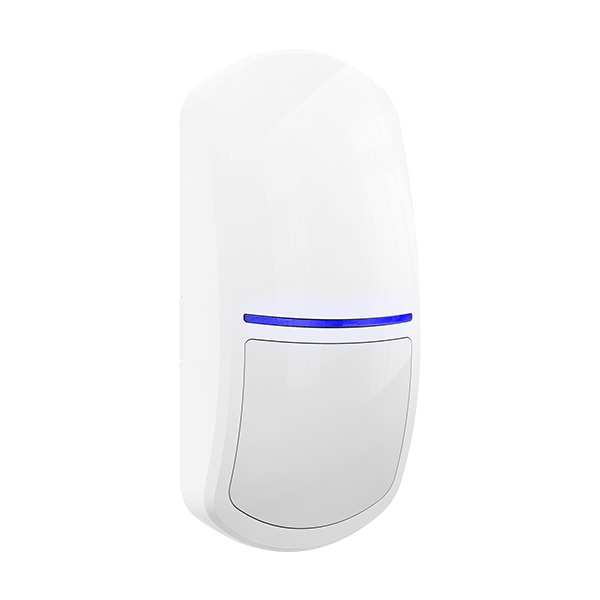

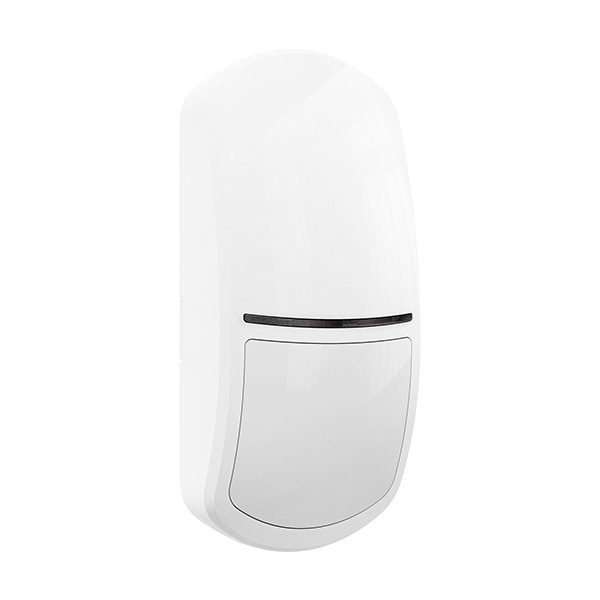

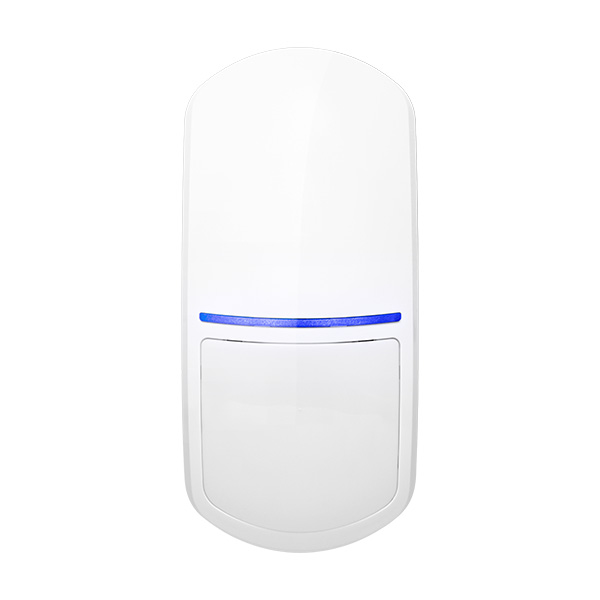

The SLIM-DUAL-LUNA BUS detector senses motion within the protected area using infrared and microwave technology. Additionally, the detector is equipped with a set of LEDs providing a lighting function. The detector can be connected to the RS communication bus of a SATEL alarm control panel supporting bus-connected devices.

• compliant with the EN 50131 Grade 2 requirements
• motion detection using a passive infrared (PIR) sensor and a microwave (MW) sensor
• maximum detection area: 20 m × 24 m, 90°
• adjustable detection sensitivity
• independent sensor testing capability
• digital motion detection algorithm
• digital temperature compensation
• digital filtering of signals received by the microwave sensor for immunity to interference caused by the power grid and discharge lamps
• option to enable/disable creep zone control
• wide-angle lens specially designed for detectors from the SLIM LINE series
• replaceable lens with either a curtain lens (CT-CL) or a long-range lens (LR-CL)
• RS communication bus
• settings configuration via the RS bus
• firmware update via the RS bus
• built-in temperature sensor (measurement range: -10°C to +55°C)
• lighting function implemented using LEDs
• remote lighting control
• LED indicators
• supervision of the motion detection circuit
• 12 V DC power supply (±15%)
• power supply monitoring
• tamper protection against enclosure opening and removal from the mounting surface
• adjustable mounting bracket (BRACKET D) included
