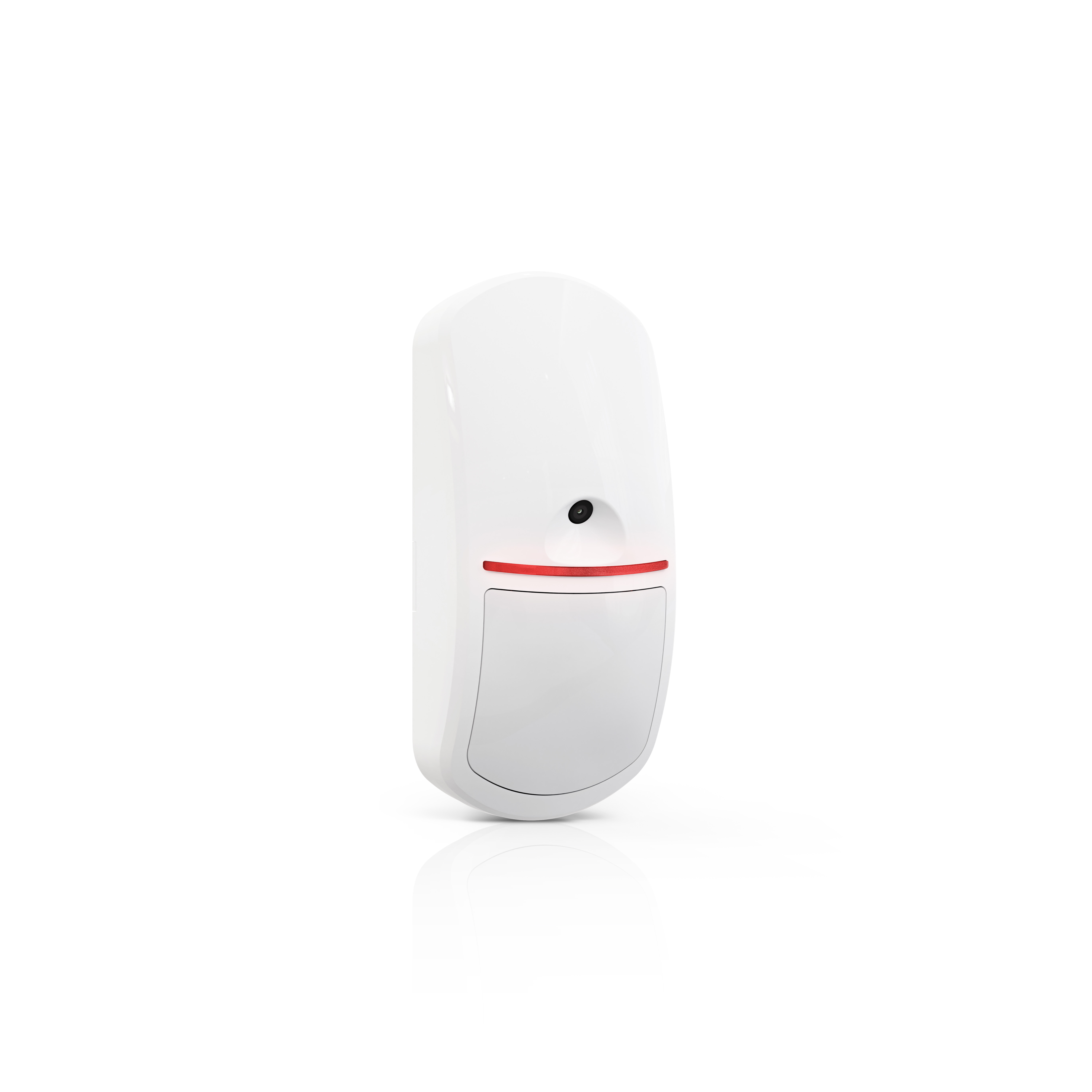

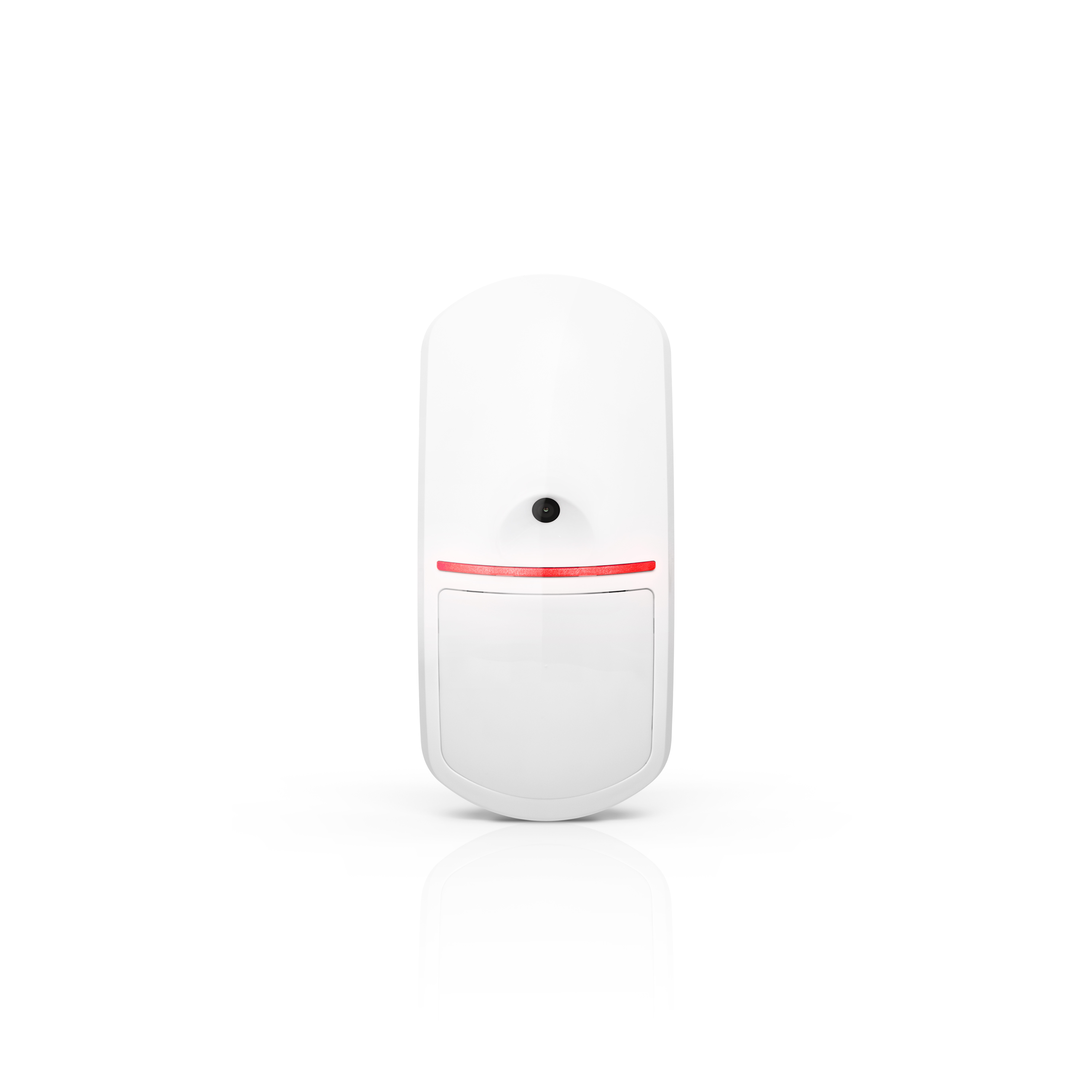

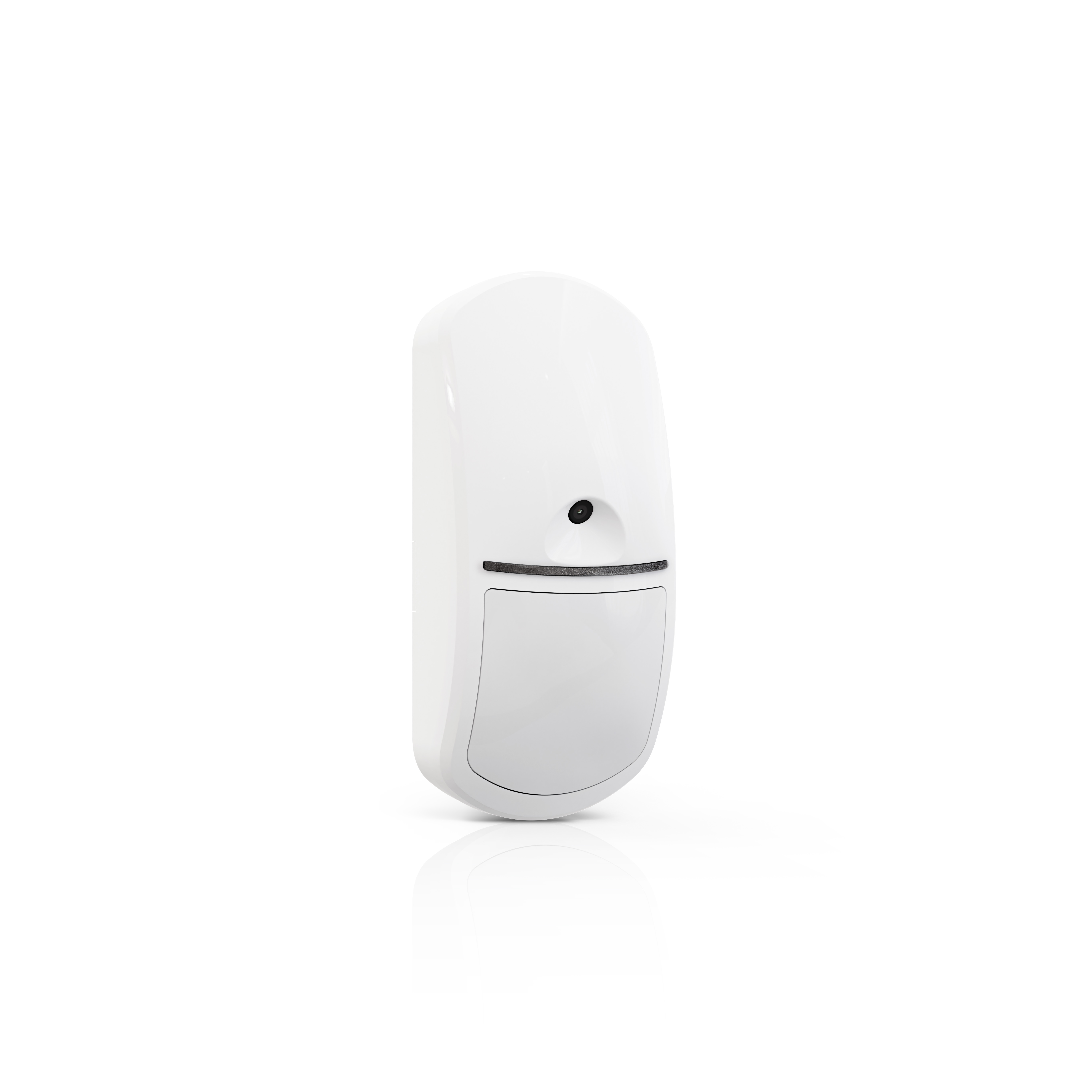

The APCAM-200 detector (Motion Detector Cam) uses infrared to detect motion. It has a camera that sends photos to the app in case of alarm or on user’s request.

• motion detection using passive infrared sensor (PIR)
• maximum coverage area: 15 m x 24 m, 90°
• digital motion detection algorithm
• digital temperature compensation
• option to enable / disable the creep zone protection
• camera for alarm verification:
  • a series of 3 photos after an alarm when the detector is armed
  • switching to black and white mode in poor lighting
  • infrared illumination in poor lighting
  • capability to take photos on request
  • image size: 640x480 pixels
• compatible with:
  • BE WAVE Hybrid control panels
  • BE WAVE Smart HUB controllers
• operation in the 868 MHz frequency band
•  AES encrypted two-way radio communication
• transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals
• additional transmission channel in the 868 MHz frequency band for the purpose of sending photos
• remote settings programming
• remote firmware update
• built-in temperature sensor (measuring range: -10°C...+55°C)
• LED indicators
• supervision of motion detection system
• powered by:
  • CR123A 3 V battery (required)
  • APS-055 power supply (optional)
• battery status control
• tamper protection against enclosure opening and removal from mounting surface
