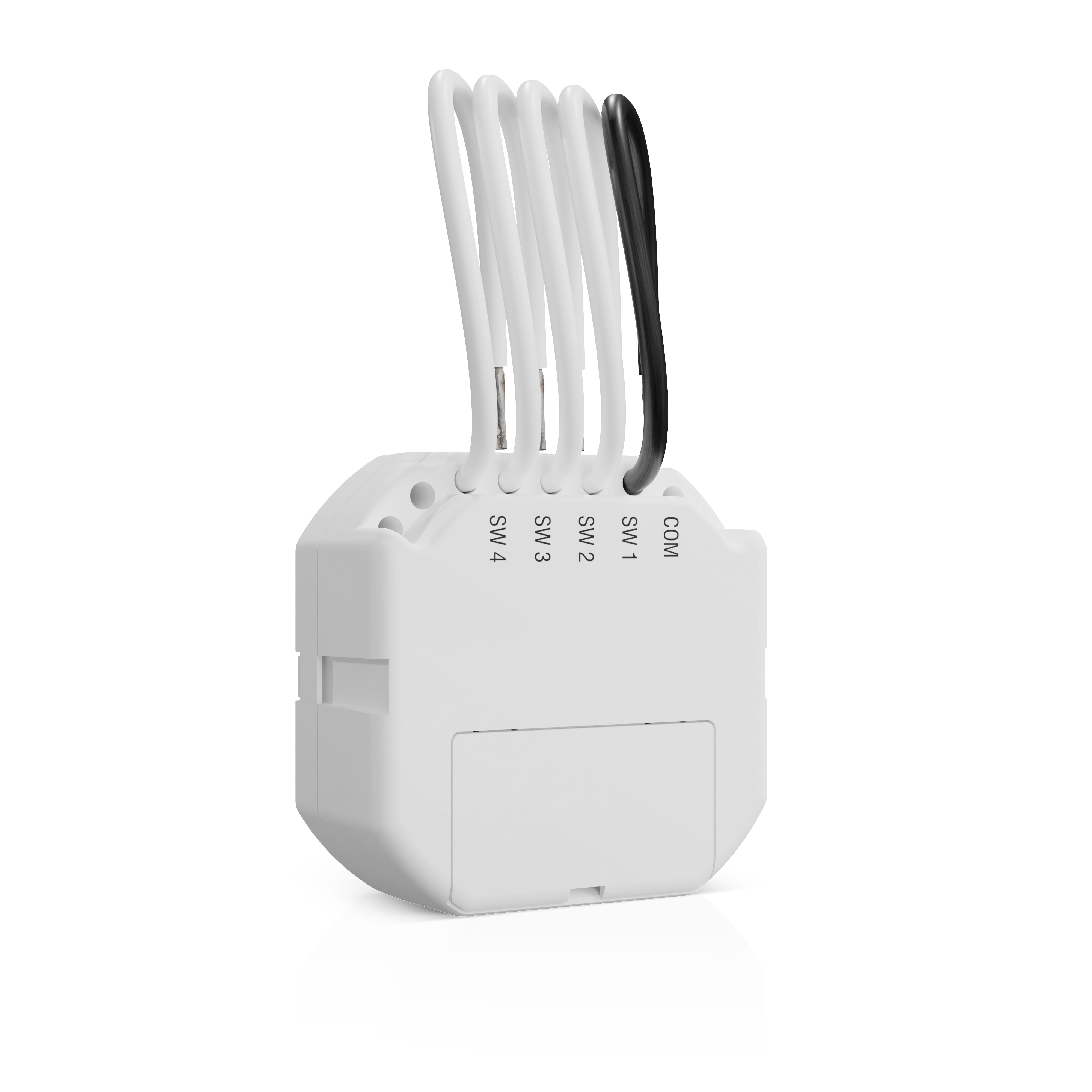

The ATX-200 module (Smart Switch Controller) enables electrical switches to be used to control the system.

• 4 control inputs:
  • capability to operate a push-button or a switch
  • capability to control any device in the system
• compatible with
  • BE WAVE Hybrid control panels
  • BE WAVE Smart HUB controller
• operation in the 868 MHz frequency band
• AES encrypted two-way radio communication
• transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals
• remote settings programming
• remote firmware update
• powered by CR14250 3 V battery
• battery status control
• installed in a flush- or surface-mounted junction box with a minimum diameter of 60 mm
