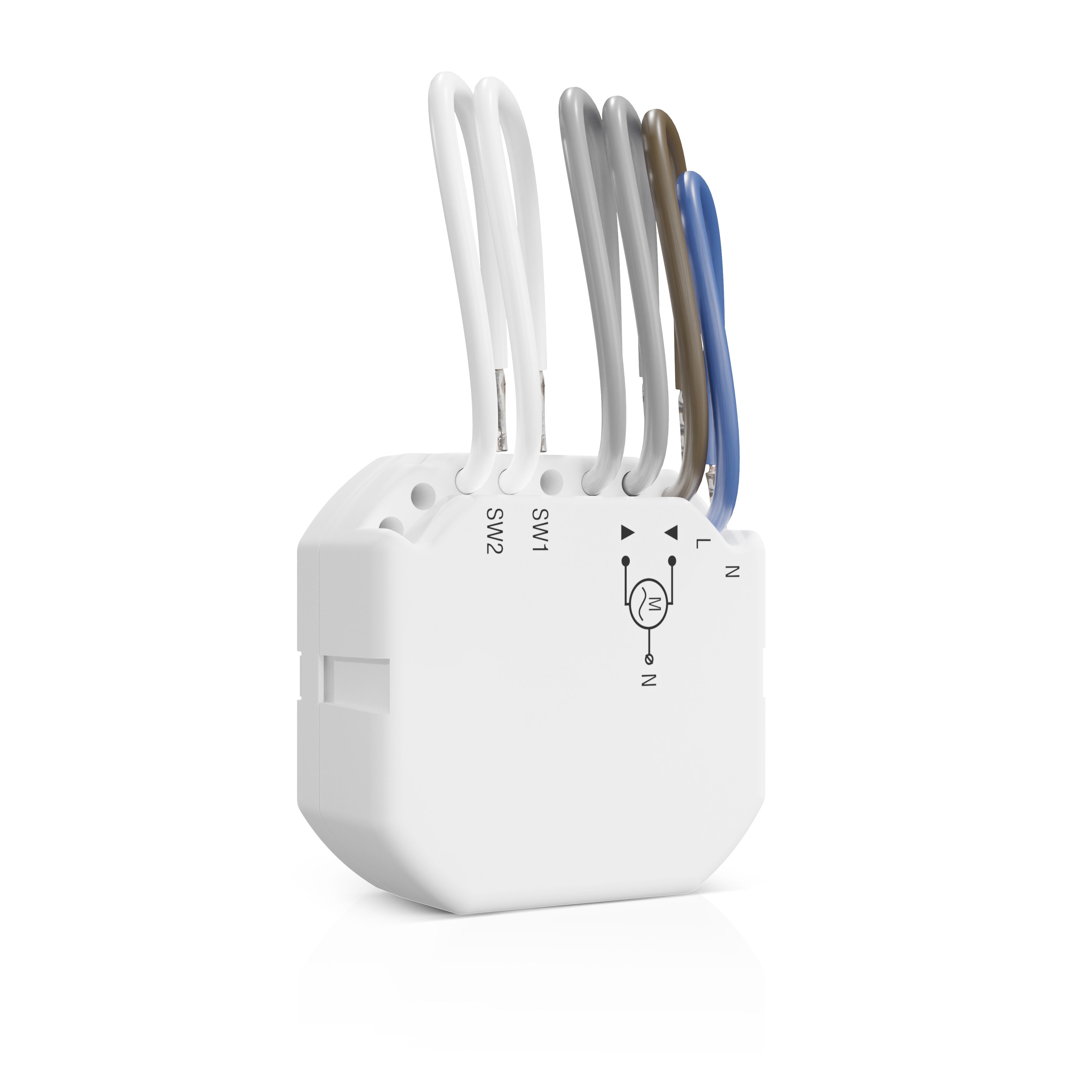

Wireless roller shutter/blind in-wall controller

The ARSC-200 controller (Smart Blinds) is used to open and close roller blinds / shutters / electric windows. It controls devices driven by a 230 VAC motor with limit switches.

  • control of blinds / shutters / windows driven by 230 VAC
  • remote control or local control by means of control inputs
  • automatic detection of blind / shutter travel time
  • detection of blind / shutter errors (no power, incorrect position, mechanical jam, motor overheating)
  • 2 control inputs:
    • capability to connect a double push-button or a roller blind switch
    • local blind / shutter control
    • capability to control any device in the system
  • compatible with:
    • BE WAVE Hybrid control panels
    • BE WAVE Smart HUB controllers
  • operation in the 868 MHz frequency band
  • AES encrypted two-way radio communication
  • transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals
  • remote settings programming
  • remote firmware update
  • powered by 230 VAC
  • installed in a flush- or surface-mounted junction box with a minimum diameter of 60 mm
