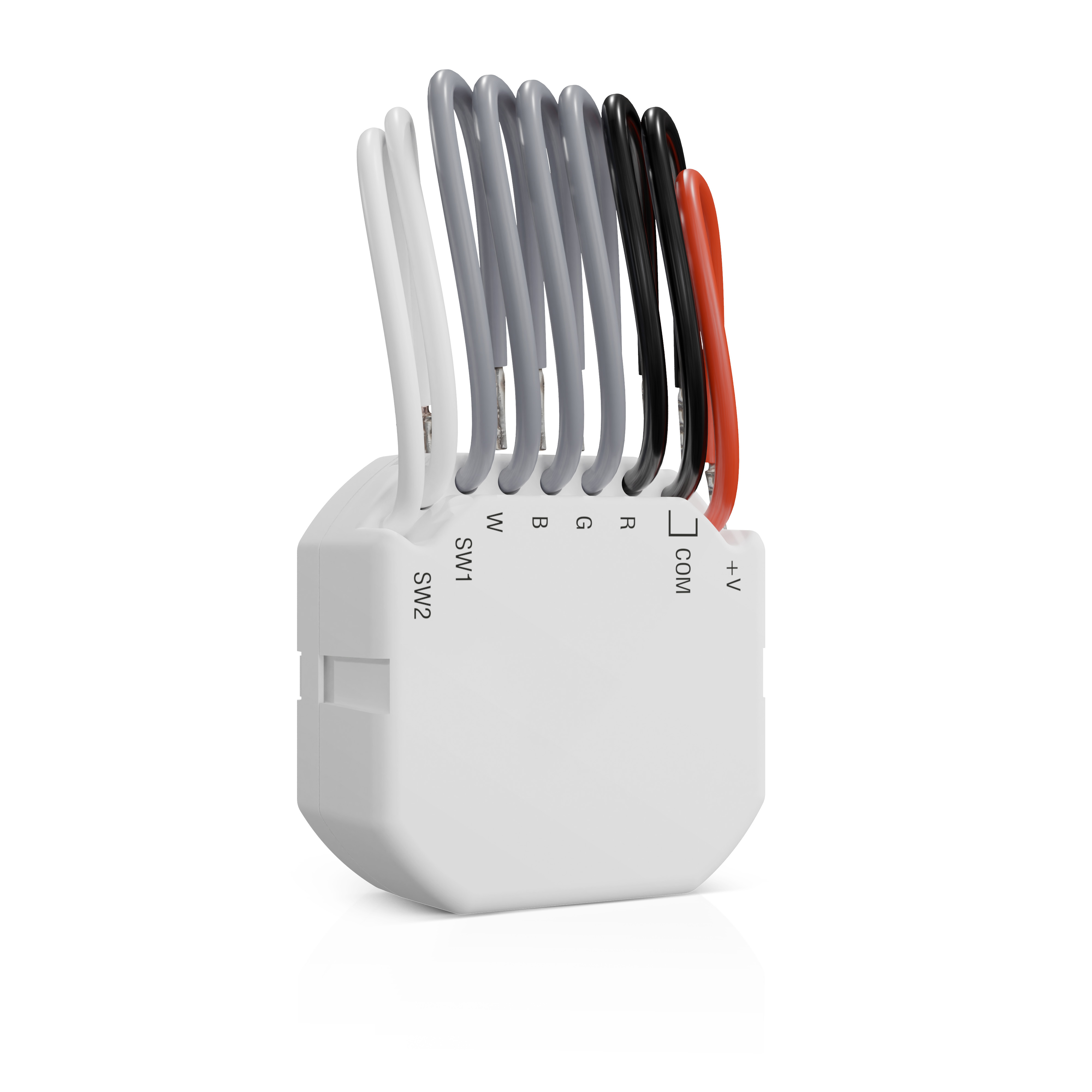

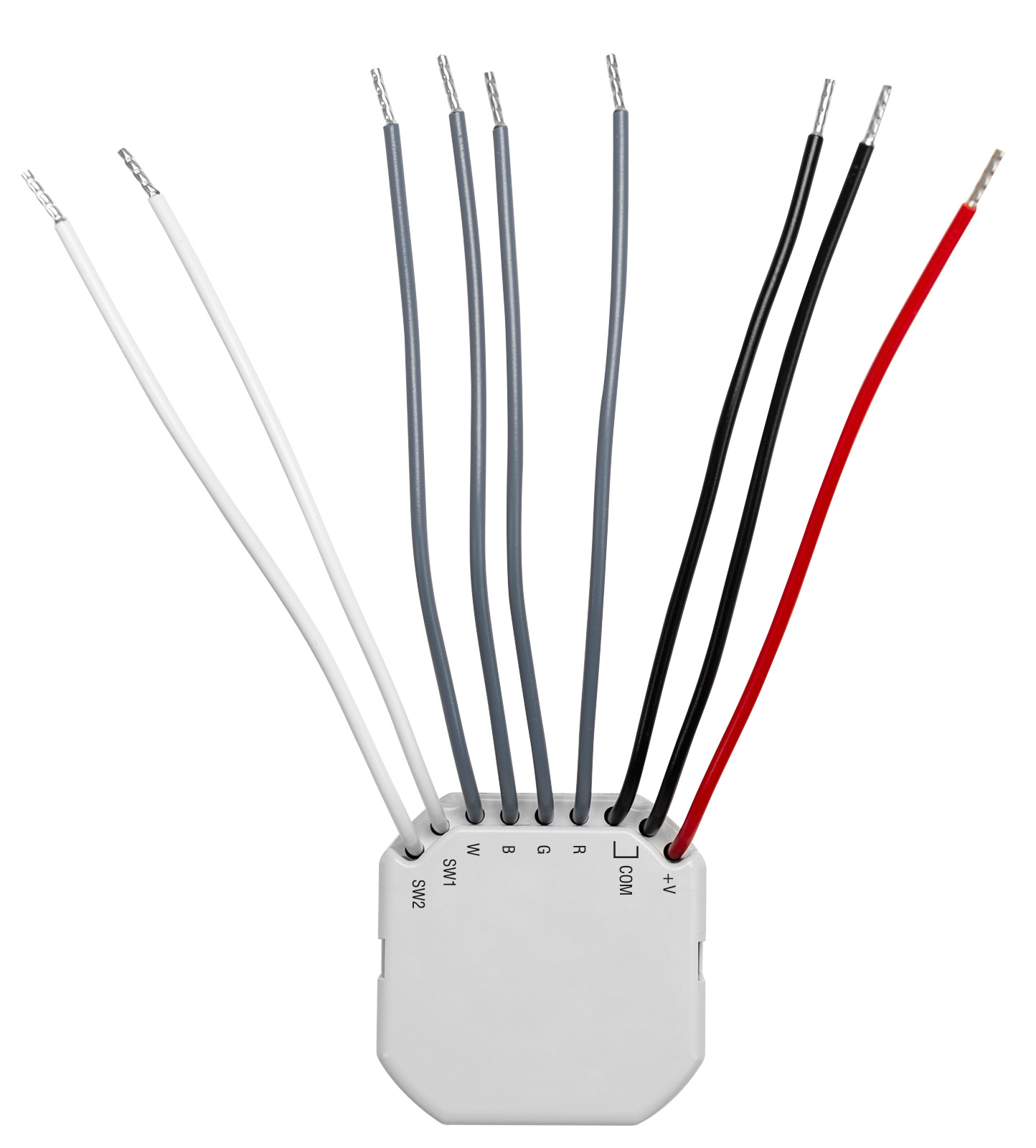

The ARC-200 controller (Smart RGBW LED Driver) is used to control the light colour and adjust the brightness of 12...48 V DC LED lighting. It allows you to turn on / turn off / dim down / dim up the lights / change the light colour. The manual applies to the controller installed in the BE WAVE system.

• control of various light sources
  • RGBW LED strip
  • RGB LED strip
  • CCT LED strips (cool/warm)
  • single color LED strips
  • LED bulbs
  • halogen bulbs
• remote control or local control by means of control inputs
• stepless adjustment of light brightness
• memory of set color and brightness level
• 2 control inputs
  • capability to connect a push-button or a switch
  • lighting controlled locally
• capability to control any device in the system
• compatible with
  • BE WAVE Hybrid control panels
  • BE WAVE Smart HUB controllers
• operation in the 868 MHz frequency band
• AES encrypted two-way radio communication
• transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals
• remote settings programming
• remote firmware update
• hardware protection against overheating
• powered by 12...48 VDC
• installed in a flush- or surface-mounted junction box with a minimum diameter of 60 mm
