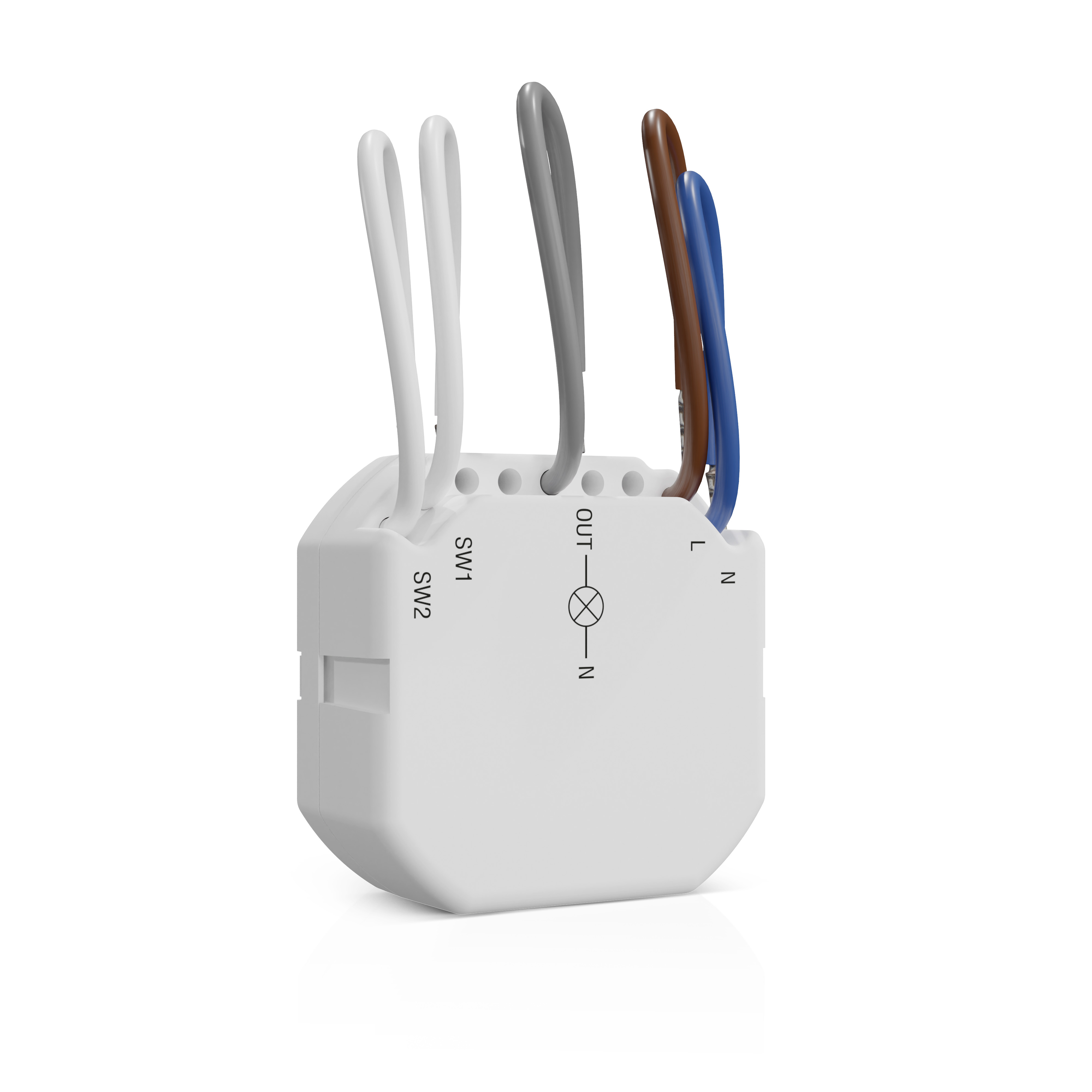

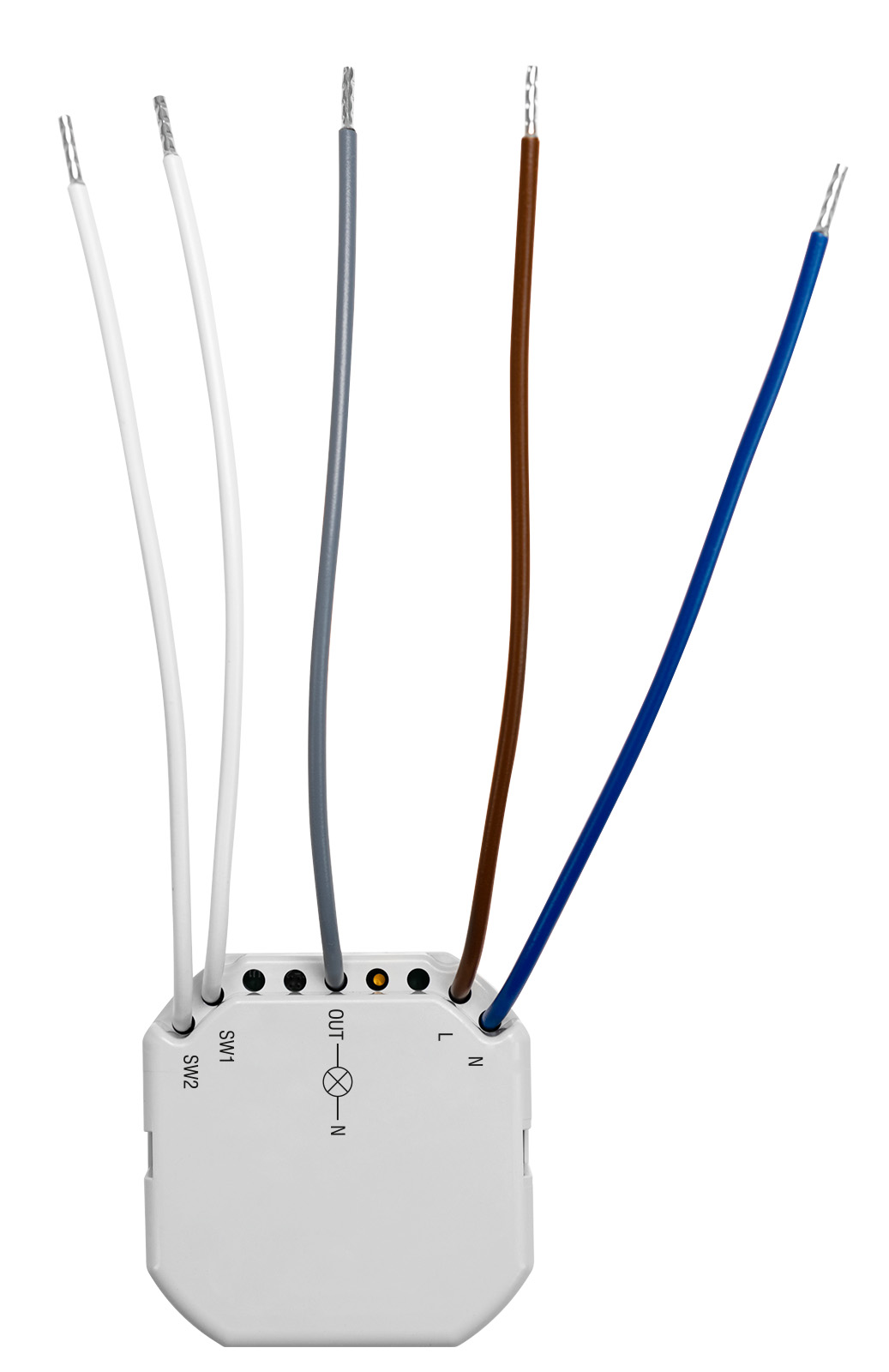

The ADC-200 dimmer (Smart Dimmer) is used to adjust the brightness of 230 VAC lighting. It can be used to turn on / turn off / dim down / dim up the lights.

• control of various light sources:
  • 230 V incandescent bulbs
  • 230 V halogen bulbs
  • dimmable 230 V LED bulbs
  • light sources powered by an electronic or magnetic transformer
• connected load automatically detected
• remote control or local control by means of control inputs
• stepless adjustment of light brightness
• memory of set brightness level
• 2 control inputs:
  • capability to connect a push-button or a switch
  • lighting controlled locally
  • capability to control any device in the system
• compatible with
  • BE WAVE Hybrid control panels
  • BE WAVE Smart HUB controllers
• operation in the 868 MHz frequency band
• AES encrypted two-way radio communication
• Transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals
• remote settings programming
• remote firmware update
• firmware protection against overload and overheating
• powered by 230 VAC
• installed in a flush- or surface-mounted junction box with a minimum diameter of 60 mm
