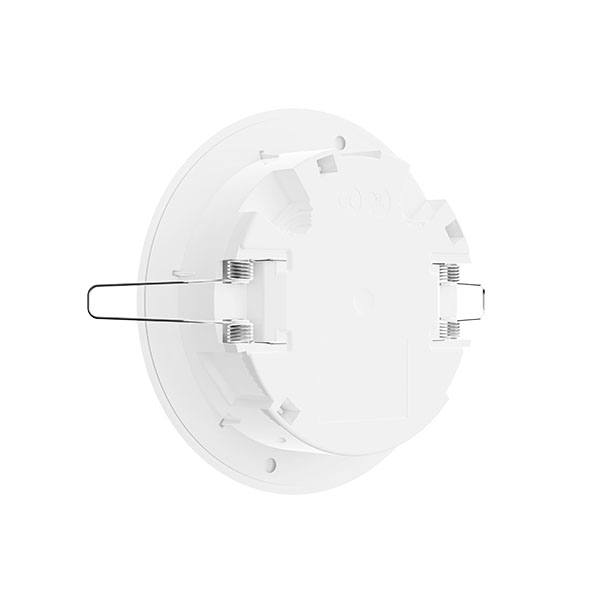

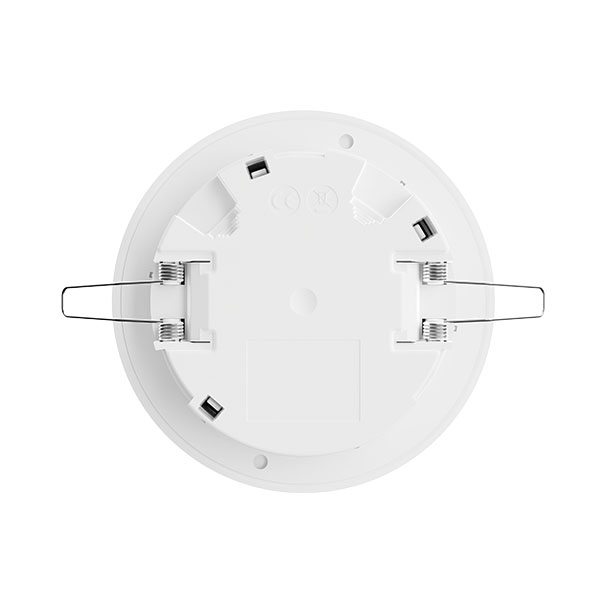

APC-200 R is a wireless indoor motion detector designed for recessed ceiling mounting. The APC-200 R detector operates within the ABAX 2 two-way wireless system.
This model is also available for surface mounting (APC-200 S).
- compliant with the EN 50131 Grade 2 requirements
- supported by:
- ACU-220 / ACU-280 controllers
- ARU-200 repeater
- BE WAVE Hybrid alarm control panels
- BE WAVE Smart HUB controllers
- radio communication range in open space: up to 2000 m*
- motion detection using a passive infrared (PIR) sensor
- maximum detection area:
- ø 6 m / 28 m² – mounting height 2,4 m
- ø 10 m / 79 m² – mounting height 3,5 m
- digital motion detection algorithm
- digital temperature compensation
- encrypted two-way radio communication in the 868 MHz frequency band (AES standard)
- transmission channel diversification – 4 channels enabling automatic selection of the channel that allows interference-free communication with other signals in the 868 MHz frequency band
- remote configuration and firmware update
- built-in temperature sensor (measurement range: 10°C…+55°C)
- LED indicator signaling violations in test mode
- supervision of the motion detection circuit
- powered by a CR123A 3 V battery
- power supply monitoring
- ECO mode option to extend battery life
- battery status monitoring
- tamper protection against enclosure opening and detector displacement (optional, when displacement detection is enabled*)
- flush-mounted ceiling installation
*detailed information is available in the device manual
