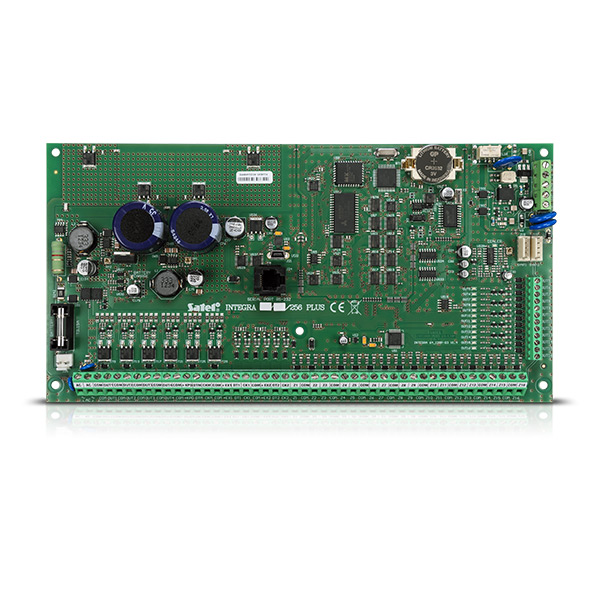

INTEGRA 256 Plus

Alarm control panel mainboard, from 16 to 256 zones and outputs, compliant with the GRADE 3 standard

Owing to their full compliance with the EN50131 Grade 3 requirements, the INTEGRA Plus control panels will be a perfect solution for implementing advanced security systems in facilities with a particularly high risk of burglary, e.g. jewelry shops or public utility buildings. These control panels feature extended functionality, which enables them to be used to implement access control systems or even smart building systems.

  • full compliance with the EN50131 series standards for Grade 3 devices
  • built-in advanced 2 A+1.5 A power supply with extended diagnostic functions
  • support for up to 256 zones with a possibility to program parametric resistance and operate 3EOL lines
  • USB port for programming by means of a PC
  • possibility to divide the system into 32 partitions and 8 objects
  • expandability up to 256 programmable outputs
  • communication buses to connect keypads and expansion modules
  • integrated phone communicator with reporting, voice messaging and remote control functions
  • system operation by means of touchscreen keypads, LCD keypads, partition keyboards, keyfobs and proximity cards or remote control via computer or mobile phone
  • 64 independent automatic control timers
  • access control and home automation functions
  • event log for 24,575 events, with a printout function
  • support for up to 240+8+1 users
  • firmware update capability by means of a computer
  • option of not reporting possible problems with connecting to the SATEL server as a failure
EN-50131 GRADE 3 - Certyfikat
