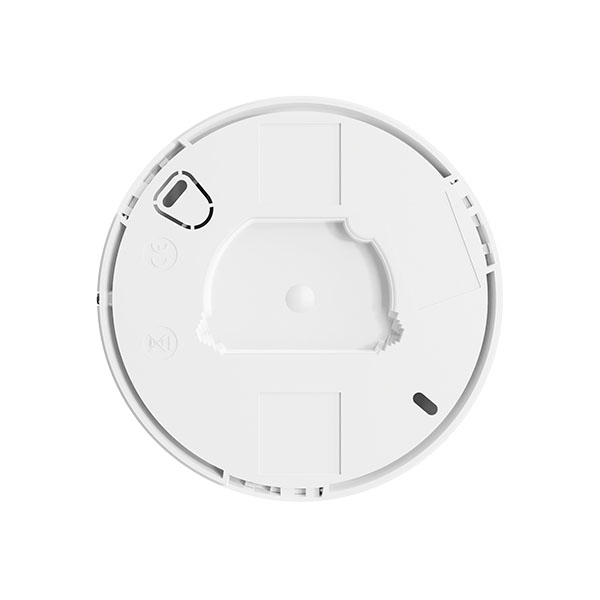

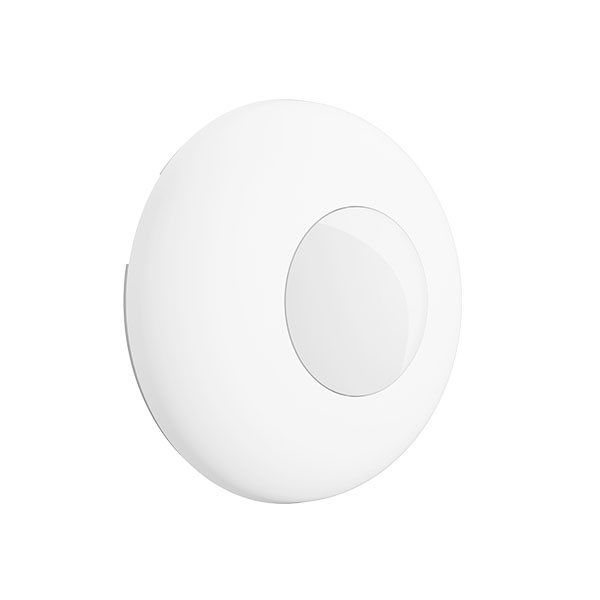

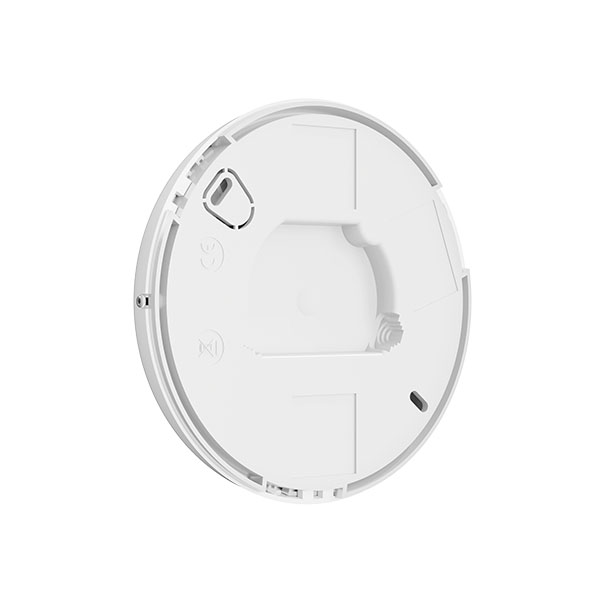

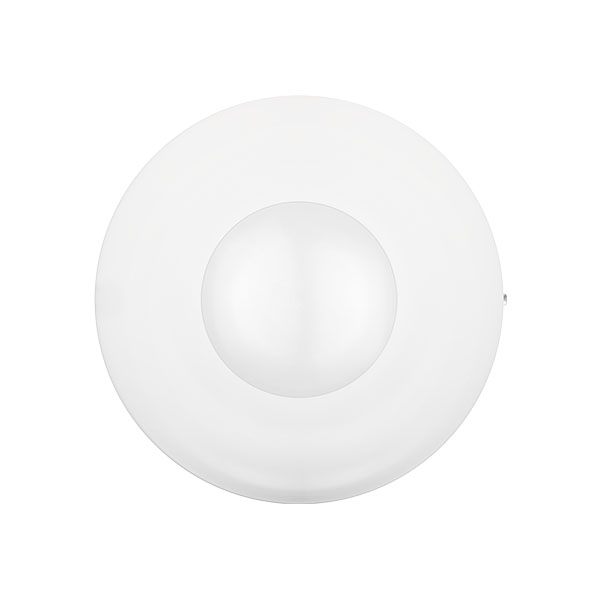

SLIM-S-PIR-LUNA BUS is an indoor motion detector from the SLIM LINE series, designed for surface-mounted ceiling installation. The detector can be connected to the RS communication bus of a SATEL alarm control panel supporting bus-connected devices.

This model is also available for recessed-mounting (SLIM-R-PIR-LUNA BUS).

• compliant with the EN 50131 Grade 2 requirements
• motion detection using a passive infrared (PIR) sensor
• maximum detection area:
  • ø 6 m / 28 m² – mounting height 2,4 m
  • ø 10 m / 79 m² – mounting height 3,5 m
• adjustable detection sensitivity
• digital motion detection algorithm
• digital temperature compensation
• RS communication bus
• settings configuration via the RS bus
•  firmware update via the RS bus
• built-in temperature sensor (measurement range: -10°C to +55°C)
• lighting function implemented using LEDs
• remote lighting control
• LED indicator
• supervision of the motion detection circuit
• 12 V DC power supply (15%)
• power supply monitoring
• tamper protection against enclosure opening and removal from the mounting surface
• surface-mounted ceiling installation
