Zones and outputs expansion wireless module

Meet the successor of ACX-200!

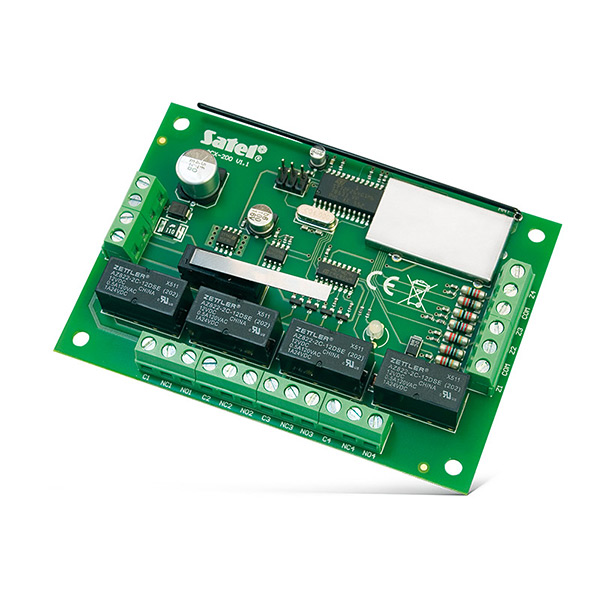

Wireless expander of wired zones/outputs


The ACX-200 wireless zones and outputs expander is an expansion module that enables wired devices to be included into the ABAX two-way wireless system. It is provided with 4 zones for connecting wired detectors in NO, NC, EOL, 2EOL/NO and 2EOL/NC configurations. The module has 4 relay outputs to operate e. g. sirens, and a tamper switch. The maximum range of wireless communication is 500 m in open area. The device is compatible with INTEGRA 128-WRL control panel, ACU-120, ACU-270 and the older ACU-100 and ACU-250 controllers, as well as with ARU-100 radio signal repeater. The ACX-200 expander complies with EN 50131-3 requirements for Grade 2.

  • ABAX wireless interconnect for hardwired security equipment
  • 4 zones: NO, NC, EOL, 2EOL/NO, 2EOL/NC configurations support
  • 4 independent relay outputs
  • tamper protection
EN-50131 GRADE 2 - Certyfikat
The actual appearance of the products may differ from the presented images. Product descriptions are provided in the web service for information purposes only.
