No compromise should be made in this regard. The INTEGRA and INTEGRA Plus series of alarm control panels set the standards for professional security systems. Both hardware and software meet the rigorous standards applicable to top-class security installations. For years, these devices have been among the world’s leading advanced control panels.
The INTEGRA and INTEGRA Plus control panels support the division of the alarm system into separate partitions (up to 32). Each of them can be armed independently of others. The INTEGRA and INTEGRA Plus control panels also allow to set up 8 objects (group of partitions). As a result, based on a single control panel you can build several independent smaller alarm systems, each with own administrator and users. This proves useful, for example, in buildings where independent businesses are located.
Devices from the INTEGRA and INTEGRA Plus families also offer access control and building automation functions. Alarm systems based on these control panels can be integrated with advanced access control systems (ACCO NET), building automation in KNX standard, or other third-party systems. If you need to manage distributed systems based on the INTEGRA and INTEGRA Plus control panels, you can use dedicated INTEGRUM software.
When integrated with different communication modules – either Ethernet (ETHM-1 Plus) or cellular (INT-GSM LTE/INT-GSM) – the INTEGRA and INTEGRA Plus control panels support the DUAL PATH REPORTING. By default, cellular network acts as a backup communication path for Ethernet network. This guarantees reliable transmission of information to monitoring stations.
Quick response to emergency adaptation of system functions to new user expectations is another important feature of the solution. This requires efficient tools. The DLOADX program for configuration and maintenance can be operated both locally in the facility and remotely.

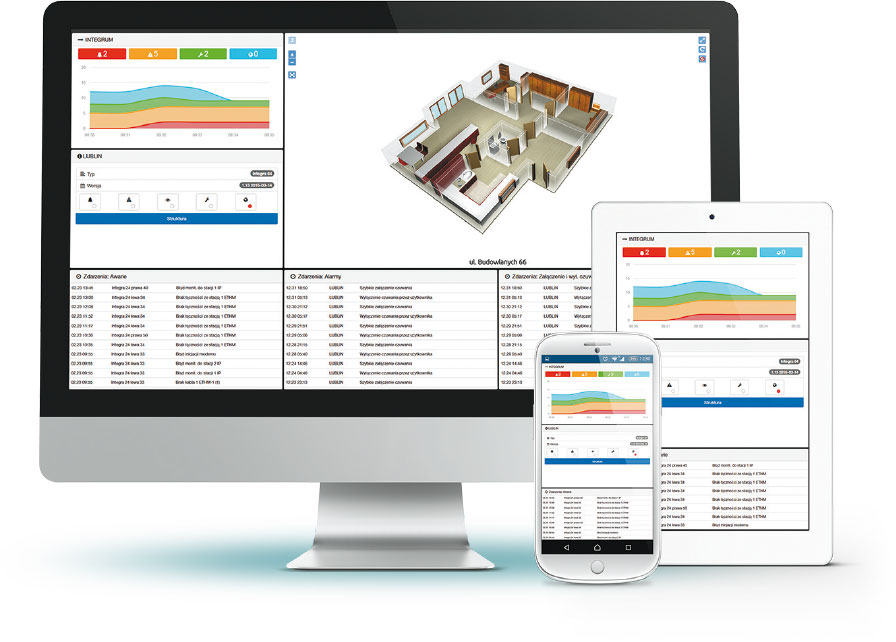

With the use of the GUARDX software, the alarm system may be supervised and administered either locally, or remotely from any place in the world. Security management centre can check the current system status, watch live IP camera feed, or manage users, providing constant 24/7 surveillance of secured premise.
Effective central management is also required in the case of institutions or multidivisional companies, such as retail chains, banks or government offices. This solution can be provided by INTEGRUM – the software which integrates many installations based on INTEGRA and INTEGRA Plus control panels into a single scalable system.
| INTEGRA 24 | INTEGRA 32 | INTEGRA 64 | INTEGRA 128 | INTEGRA 64 Plus | INTEGRA 128 Plus | INTEGRA 256 Plus | INTEGRA 128-WRL | |
|---|---|---|---|---|---|---|---|---|
| Number of zones / max number of zones (supporting wired detectors) / max number of zones (supporting wired and wireless detectors) | 4 / 24 / 16 | 8 / 32 / 24 | 16 / 64 / 48 | 16 / 128 / 112 | 16 / 64 / 48 | 16 / 128 / 112 | 16 / 256 / 240 | 8 / 128 / 120 |
| Number of partitions / objects | 1 / 4 | 4 / 16 | 8 / 32 | 8 / 32 | 8 / 32 | 8 / 32 | 8 / 32 | 8 / 32 |
| Support for LED / LCD / touch / touchscreen keypads | • / • / • / • | • / • / • / • | • / • / • / • | • / • / • / • | • / • / • / • | • / • / • / • | • / • / • / • | • / • / • / • |
| Support for remote control keyfobs or proximity cards | • | • | • | • | • | • | • | • |
| Remote control keyfobs for system users | option | option | option | option | option | option | option | • |
| System users + admins + service technician | 16 + 1 + 1 | 64 + 4 + 1 | 192 + 8 + 1 | 240 + 8 + 1 | 192 + 8 + 1 | 240 + 8 + 1 | 240 + 8 + 1 | 240 + 8 + 1 |
| Number of programmable outputs / max number of programmable outputs (for controlling connected devices) | 4 / 20 + 4 (virtual) | 8 / 32 | 16 / 64 | 16 / 128 | 16 / 64 | 16 / 128 | 16 / 256 | 8 / 256 |
| Built-in communicator: PSTN / cellular / ETHERNET | • / − / − | • / − / − | • / − / − | • / − / − | • / − / − | • / − / − | • / − / − | − / • / − |
| Acoustic alarm verification | − | − | − | − | − | − | − | − |
| Remote control via tone dialling | • | • | • | • | • | • | • | • |
| Remote control via text (SMS) messages | option | option | option | option | option | option | option | • |
| Mobile app support | option | option | option | option | option | option | option | option |
| Data transfer via Ethernet | option | option | option | option | option | option | option | option |
| Data transfer via cellular network | option | option | option | option | option | option | option | • |
| Support for wireless devices | option | option | option | option | option | option | option | • |
Rozbudowany system alarmowy realizuje, poza podstawowym zadaniem jakim jest zapewnienie ochrony ludziom i mienia, funkcje automatyki budynkowej oraz kontroli dostępu. Idealnie sprawdzi się w zabezpieczeniu obiektów zarówno prywatnych, jak i firmowych oraz infrastruktury krytycznej.
